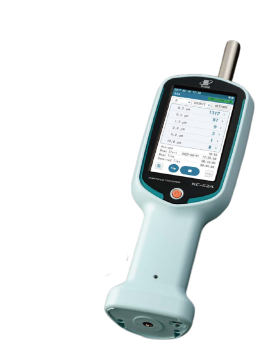

KC-52A
商品簡述：
- Minimum measurable particle diameter：
0.3μm - Rated flow：
2.83L/min - Maximum particle number concentration：
140,000,000 particles/m3 (coincidence loss 10%)
檔案下載
詳細規格
| Optical system | Sideway light-scattering method |
| Light source | Laser diode (wavelength: 780nm, rated output 35mW) |
| Measurement size range | 6 channels: ≥0.3µm, ≥0.5µm, ≥1.0µm, ≥2.0µm, ≥5.0µm, ≥10.0µm |
| Flow rate | 2.83L/min |
| Maximum particle number concentration | 140 000 000 particles/m3 (coincidence loss 10%) |
| Power requirements | Built-in battery or AC adapter (100V to 240V AC, 50/60Hz) |
| Dimensions | Approx. 307 (H) x 93 (W) x 54 (D) mm |
| Weight | Approx. 680g |
