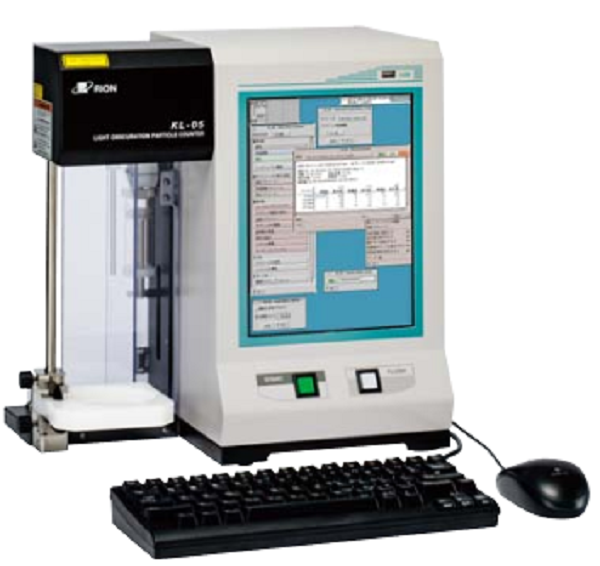

KL-05
商品簡述：
- Minimum measurable particle diameter：
1.3μm - Rated flow：
25ｍL/min - Maximum particle number concentration：
10,000 particles/mL(10 μm vicinity PSL particles, coincidence loss max. 10%)
檔案下載
詳細規格
| Optical system | Light-obscuration method |
| Light source | Laser diode (rated output 4.5 mW, wavelength 790 nm) |
| Fluid-contacting materials | Flow cell：Synthetic quartz Syringe：Borosilicate glass, PTFE Syringe pump：Kel-F (PCTFE), PTFE Tube, packing, joint：PFA, PTFE, PCTFE, Perflo (special fluorine rubber) |
| Particle size ranges | 1 to 20 ranges from 1.3 μm to 100 μm (in 0.1 μm steps) |
| Flow rate | 25 mL syringe：25 mL/min 10 mL syringe：10 mL/min＊Factory option |
| Maximum particle number concentration | 10,000 particles/mL(10 μm vicinity PSL particles, coincidence loss max. 10%) |
| Power requirements | 100 V to 240 V AC, 50/60 Hz, approx. 80 VA/td> |
| Dimensions | Approx. 366 (H) x 360 (W) x 236 (D) mm |
| Weight | Approx. 10 kg |
