KL-28B
商品簡述：
- Minimum measurable particle diameter：
0.2μm - Rated flow：
10mL/min - Maximum particle number concentration：
1,200 particles/mL (coincidence loss 5%)
檔案下載
詳細規格
| Optical system | Light-scattering method |
| Light source | Laser diode (wavelength: 780nm, rated output 40mW) |
| Materials of parts exposed to sample fluid | Synthetic quartz, PFA, PTFE |
| Measurement size range | 2 channels: ≥0.2µm, ≥0.5µm |
| Flow rate | 10mL/min |
| Maximum particle number concentration | 1,200 particles/mL (coincidence loss 5%) |

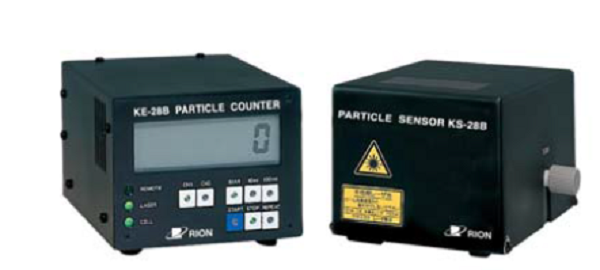

| Power requirements | supplied by KE-28B, 100V AC, Approx. 23VA |
| Dimensions | Approx. 70 (H) x 85 (W) x 118 (D) mm |
| Weight | Approx. 0.6kg |
