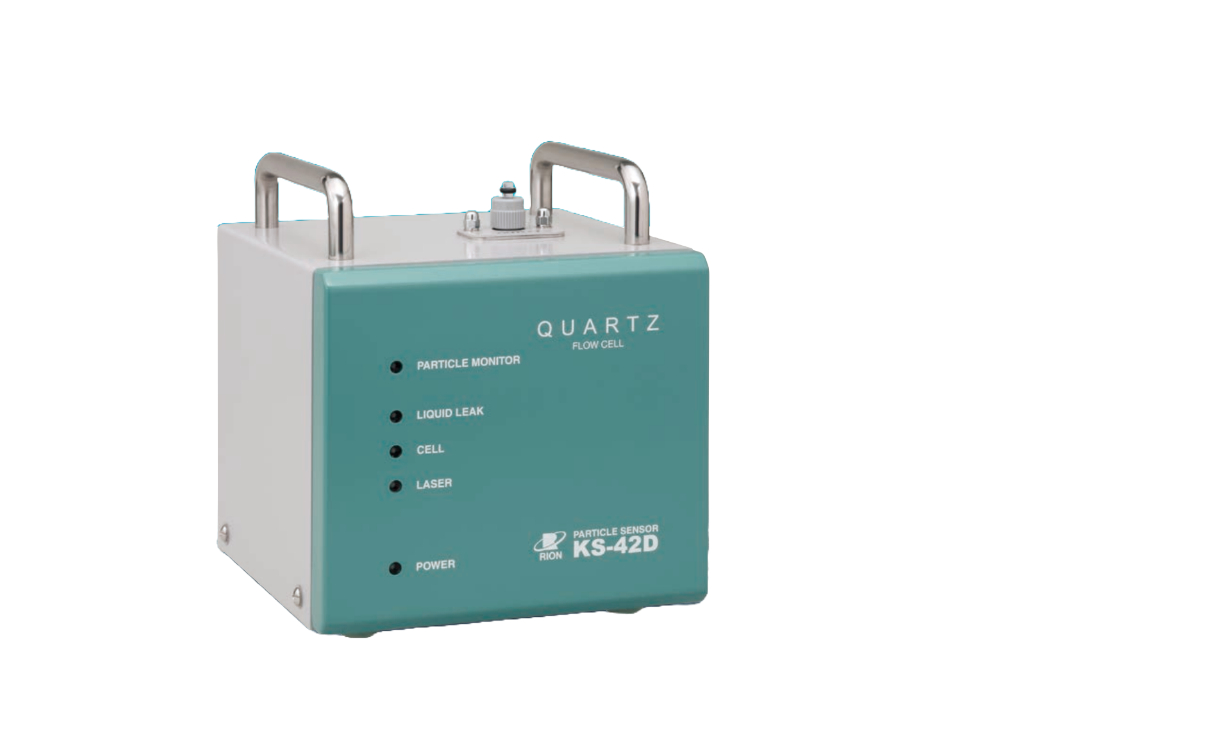

KS-42D
商品簡述：
- Minimum measurable particle diameter：
2μm - Rated flow：
25mL/min - Maximum particle number concentration：
10,000 particles/mL (coincidence loss 10%)
檔案下載
詳細規格
| Optical system | Light obscuration method |
| Light source | Laser diode (wavelength: 780nm, rated output 5mW) |
| Materials of parts exposed to sample fluid | Synthetic quartz, PFA, Perfluoro |
| Measurement size range | 8 channels (Factory default): ≥2µm, ≥3µm, ≥5µm, ≥7µm, ≥10µm, ≥25µm, ≥50µm, ≥100µm (≥150µm support available as option) Setting range 2µm to 100µm |
| Flow rate | 10mL/min |
| Maximum particle number concentration | 10,000 particles/mL (coincidence loss 10%) |
| Power requirements | DC12V (Supplied by KE-40B1) |
| Dimensions | Approx. 125 (H) x 140 (W) x 150 (D) mm |
| Weight | Approx. 2.2kg |
