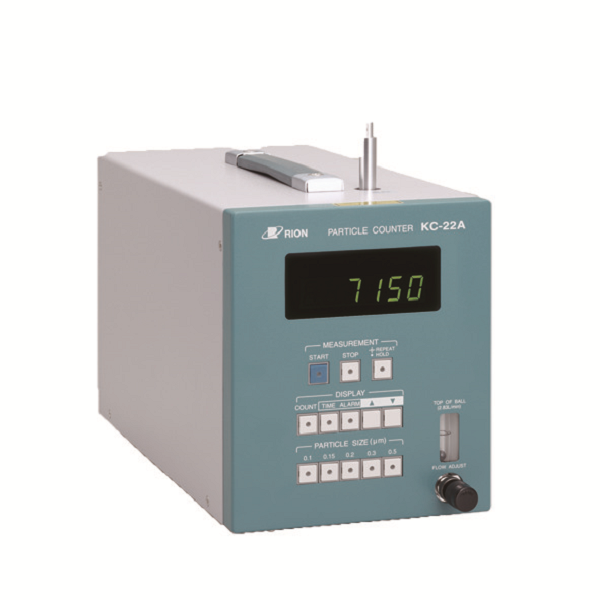

KC-22A
商品簡述：
- Minimum measurable particle diameter：
0.1μｍ - Rated flow：
2.83L/min - Maximum particle number concentration：
10,000 particles/L (coincidence loss 5%)
檔案下載
詳細規格
| Optical system | Light-scattering method |
| Light source | Diode pumped solid state laser (wavelength: 1064nm) |
| Measurement size range | 5 channels: ≥0.1µm, ≥0.15µm, ≥0.2µm, ≥0.3µm, ≥0.5µm |
| Flow rate | 2.83L/min |
| Maximum particle number concentration | 10,000 particles/L (coincidence loss 5%) |
| Power requirements | 100V AC, 50/60Hz, Approx. 80VA |
| Dimensions | Approx. 185 (H) x 155 (W) x 330 (D) mm |
| Weight | Approx. 7.5kg |
