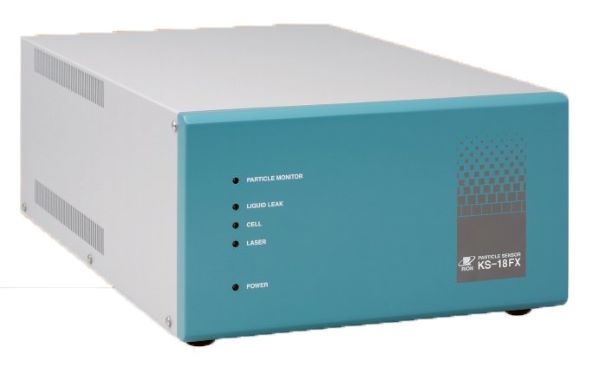

KS-18FX
商品簡述：
- Minimum measurable particle diameter：
0.04μm - Rated flow：
10mL/min - Maximum particle number concentration：
30 000 particles/mL (coincidence loss 10%)
檔案下載
詳細規格
| Optical system | Light-scattering method |
| Light source | Diode pumped solid state laser (wavelength: 532nm, rated output 500mW) |
| Materials of parts exposed to sample fluid | Sapphire, PFA |
| Measurement size range | 4 channels (Factory default): ≥0.04µm, ≥0.08µm, ≥0.1µm, ≥0.15µmSetting range 0.04µm to 0.15µm |
| Flow rate | 10mL/min |
| Maximum particle number concentration | 30,000 particles/mL (coincidence loss 10%) |
| Power requirements | DC12V (Supplied by KE-40B1) |
| Dimensions | Approx. 147 (H) × 272 (W) × 442 (D) mm |
| Weight | Approx. 12kg |
